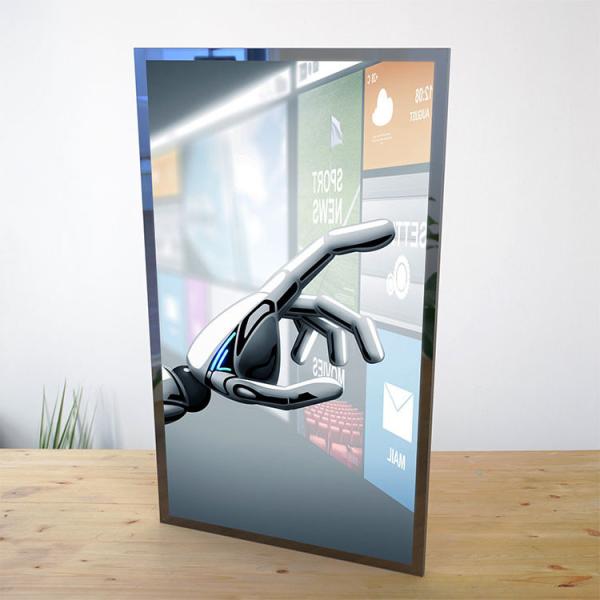

Virtual Fitting Function Retail Magic Mirror VESA Hole Installation

  • 1
  • 2

Brand Name : MIRROAWILLOV

Model Number : SNT-IPD-RM-55-W01-R01

Place of Origin : Suzhou, Jiangsu, China

Price : negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50000~100000sets/Month

Delivery Time : 30 days

Packaging Details : carton, wooden case, strapping, etc.

Outline Dimension : 1900mm*761mm*60mm

Touch Sensor Type : ITO Film (G+F+F Structure)

Controller IC : EETI

Touch Points : 10

TP+LCM Bonding Type : Frame Bonding

Ports : 1*RJ45, 2*USB 2.0, 1*USB 3.0, 1*Power Port, other ports to be defined as per requests

Contrast : 1200:1 (Typ.)

Brightness : 800 cd/m² (Typ.)

Contact Now

Virtual Fitting Function Retail Magic Mirror VESA Hole Installation

1. Product Description

Creating a connected retail experience that meets the demand of the new digital shoppers. Virtual fitting brings the convenience and speed of the online experience into store, allowing shoppers to quickly ‘try-on’ tons of outfit and find the items that suit them most.

Matching with prodigious software, the smart touch mirror equipped with complete hardware constitution including simple and elegant appearance with straight edge as well as mirror stainless steel, multi-touch projected capacitive technology, 3840*2160 4K resolution, VESA hole for installation achieves a variety of functions.

2. Technical Datasheet

Basic Information Model No. SNT-IPD-RM-55-W01-R01
Outline Dimension 1900mm*761mm*60mm
Frame Processing Alu Alloy Silver
Edge Type Straight
Installation Type Mounting Rack
Net Weight: 55kg
Display LCD Module 55inch LCD( BoE DV550QUM-N10)
Display Area 1209.6*680.4mm
Brightness 800 cd/m² (Typ.)
Resolution 3840(RGB)×2160 UHD 80PPI
Viewing Angle 89/89/89/89 (Typ.)(CR≥10)
Contrast 1200:1 (Typ.)
Touch Touch Surface 4mm Mirror Cover Glass
Touch Sensor Type ITO Film (G+F+F Structure)
Controller IC EETI
Touch Points 10
TP+LCM Bonding Type Frame Bonding
PC Option I
(Innoconn)		 System Windows 10
Config. i7/8G/128G SSD
Input Power 12V DC-in
Signal Output Support 3840*2160 Resolution
Chipset Intel H110 Chipset
PC Cost USD 985.00
PC Option II
(Asus Tinker Board)		 System Android 9.0
Config. Rockchip RK3399, A72@1.8GHz*2+A53@1.4GHz*2
GPU RM Hali-t860 mp4@800Hz
Memory 4G for system+2G for NPU+16G EMMC
Power input 12-19V DC-input
PC Cost USD 286.00
PC Option III
(X86 Normal)		 System Windows 10
Config. i5/4G/128G SSD
Input Power 12V DC-in
Signal Output Support 3840*2160 Resolution
PC Cost USD 625.00
PC Option IV
(Android Normal)		 System Android 9.0
Config. Rockchip RK3399 ARM-6 Core, 64bit Processor
GPU 4G DDR3
Memory 32G EMMC
Power input 12V DC-in
PC Cost USD 215.00

3. Other Optional Functional Parts

Barcode Scanner, NFC Reader, RFID Reader, Motion Sensor, Far-field Microphone, 3D Camera, 4K web camera

4. Accessories

Power Cord*1

Wall Mount Rack*1

Wall Mount Screws*8

Other Accessories As per requested

5. Details

Virtual Fitting Function Retail Magic Mirror VESA Hole Installation

6. FAQ

Virtual Fitting Function Retail Magic Mirror VESA Hole Installation
